HMI EW

HMI für STAND-ALONE-Anwendungen

Eine neue Generation von HMIs nach den Prinzipien der Digitalisierung und IoT. Basierend auf eine moderne und leistungsstarke Architektur kombinieren sie Visualisierung, Überwachung und Steuerung aller industriellen Automatisierungsanwendungen.

Features

  • Betriebssystem Windows Embedded Compact 7 Pro
  • WideScreen LCD Display mit LED Hintergrundbeleuchtung
  • Vorinstallierte Runtime ESA Everyware
  • SNTP Server und Client
  • PTFE-beschichtete der Aluminiumfront / INOX stainless steel with true flat touch screen
  • True Flat Touchbildschirm
  • Status-LED auf der Vorderseite
  • Prozessor Arm Cortex A8 1 GHz
  • Ram DDR3
  • Interner Speicher 3 GB
  • SDHC v2.0 (bis zu 25 Mbyte/s)
  • Display mit 16 Millionen Farben und hoher Helligkeit
  • FDA 21/EN1672-2 for food, pharma and chemical industries

EW100AA

Scarica pdf

EW104AAEW107AAEW112AAEW115AA
Display Size 4,3"7"12,1"15,6"
Display TechnologyTFTTFTTFTTFT
Display Colors 262K16M16M16M
Display BacklightLEDLEDLEDLED
Display Brightness (cd/m²)400600400300
Display Resolution (pixel) 480 x 272800 x 4801280 x 8001366 x 768
Backlight life(hours) 50K50K50K50K
Bezel Inox V2a 6mm thickness
RAM256 MB DDR3256 MB DDR3512 MB DDR3512 MB DDR3
Flash3GB3GB3GB3GB
Serial PortsSP1 RS232/485-
MPI-COM0 ;
SP2 RS232/485-MPI-COM0 ; CAN ; Profibus		SP1 RS232/485-
MPI-COM0 ;
SP2 RS232/485-MPI-COM0 ; CAN ; Profibus		SP1 RS232/485-
MPI-COM0 ;
SP2 RS232/485-MPI-COM0 ; CAN ; Profibus		SP1 RS232/485-
MPI-COM0 ;
SP2 RS232/485-MPI-COM0 ; CAN ; Profibus
Ethernet

1 x 10/100Mb2 x 10/100Mb 2 x 10/100Mb 2 x 10/100Mb
USB Ports1 x USB Host + 1 x USB Device1 x USB Host + 1 x USB Device2 x USB Host + 1 x USB Device 2 x USB Host + 1 x USB Device
Slot1 x SDHC/MMC1 x SDHC/MMC1 x SDHC/MMC1 x SDHC/MMC
Power Supply (Vdc)12-3212-3212-3212-32
Consumption (W)471519
Operating Temperature (°C)-10 … + 50 (non condensing)-10 … + 50 (non condensing)-10 … + 50 (non condensing)-10 … + 50 (non condensing)
Storage Temperature (°C)-20 … + 65-20 … + 65-20 … + 65-20 … + 65
Humidity<90% (non condensing)<90% (non condensing)<90% (non condensing)<90% (non condensing)
External dimensions(W/H/D) (mm)166 x 112 x 46 (61 with double port)202 x 142 x 46341 x 239 x 49437 x 286 x 54,5
Cut-out dimensions (W/H) (mm) 158,5 x 104,5195,0 x 135,0326,0 x 227,0422,5 x 271,5
Weight (kg)0.50.82.54.5
Protection degree (front)IP 66IP 66IP 66IP 66
CertificationsCE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 / cULus (Certificate no. E189179) / EAC/ Directive 94/9/EC Atex Group II – Category 3 G-D Zone 2/22CE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 / cULus (Certificate no. E189179) / EAC/ Directive 94/9/EC Atex Group II – Category 3 G-D Zone 2/22CE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 / cULus (Certificate no. E189179) / EAC/ Directive 94/9/EC Atex Group II – Category 3 G-D Zone 2/22CE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 / cULus (Certificate no. E189179) / EAC/ Directive 94/9/EC Atex Group II – Category 3 G-D Zone 2/22

EW100AB

Scarica pdf

EW104ABEW107ABEW112ABEW115AB
Display Size 4,3"7"12,1"15,6"
Display TechnologyTFTTFTTFTTFT
Display Colors 262K16M16M16M
Display BacklightLEDLEDLEDLED
Display Brightness (cd/m²)400600400300
Display Resolution (pixel) 480 x 272800 x 4801280 x 8001366 x 768
Backlight life(hours) 50K50K50K50K
ProcessorARM Cortex A8ARM Cortex A8ARM Cortex A8ARM Cortex A8
RAM256 MB DDR3256 MB DDR3512 MB DDR3512 MB DDR3
Flash3GB3GB3GB3GB
NVRAM32Kb (SoftPLC)32Kb (SoftPLC)32Kb (SoftPLC)32Kb (SoftPLC)
Scan Time (μSec) Typical 30Typical 30Typical 30Typical 30
Serial PortsSP1 RS232/485-MPI-COM0 ; SP2 RS232/485-MPI-COM0 ; CAN ; ProfibusSP1 RS232/485-MPI-COM0 ; SP2 RS232/485-MPI-COM0 ; CAN ; ProfibusSP1 RS232/485-MPI-COM0 ; SP2 RS232/485-MPI-COM0 ; CAN ; ProfibusSP1 RS232/485-MPI-COM0 ; SP2 RS232/485-MPI-COM0 ; CAN ; Profibus
Ethernet (Ethercat only B/C version) 1 x 10/100Mb2 x 10/100Mb 2 x 10/100Mb 2 x 10/100Mb
USB Ports1 x USB Host + 1 x USB Device1 x USB Host + 1 x USB Device2 x USB Host + 1 x USB Device 2 x USB Host + 1 x USB Device
Slot1 x SDHC/MMC1 x SDHC/MMC1 x SDHC/MMC1 x SDHC/MMC
Power Supply (Vdc)18-32 18-32 18-32 18-32
Consumption (W)471519
Operating Temperature (°C)-10 … + 50 (non condensing)-10 … + 50 (non condensing)-10 … + 50 (non condensing)-10 … + 50 (non condensing)
Storage Temperature (°C)-20 … + 65-20 … + 65-20 … + 65-20 … + 65
Humidity<90% (non condensing)<90% (non condensing)<90% (non condensing)<90% (non condensing)
External dimensions(W/H/D) (mm)166 x 112 x 45,9 (61 with double port)202 x 142 x 45,9341 x 239 x 48,6437 x 286 x 54,5
Cut-out dimensions (W/H) (mm) 158,5 x 104,5195 x 135326 x 227422,5 x 271,5
Weight (kg)0.50.82.54.5
Protection degree (front) IP 66IP 66IP 66IP 66
CertificationsCE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 / cULus (Certificate no. E189179) / EAC/ Directive 94/9/ATEX 2014/34/UE directive Group II Category 3 G D Zone 2/22CE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 / cULus (Certificate no. E189179) / EAC/ Directive 94/9/ATEX 2014/34/UE directive Group II Category 3 G D Zone 2/22CE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 / cULus (Certificate no. E189179) / EAC/ Directive 94/9/ATEX 2014/34/UE directive Group II Category 3 G D Zone 2/22CE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 / cULus (Certificate no. E189179) / EAC/ Directive 94/9/ATEX 2014/34/UE directive Group II Category 3 G D Zone 2/22

EW100AC

Scarica pdf



EW104ACEW107ACEW112ACEW115AC
Display Size 4,3"7"12,1"15,6"
Display TechnologyTFTTFTTFTTFT
Display Colors 262K16M16M16M
Display BacklightLEDLEDLEDLED
Display Brightness (cd/m²)400600400300
Display Resolution (pixel) 480 x 272800 x 4801280 x 8001366 x 768
Backlight life(hours) 50K50K50K50K
ProcessorARM Cortex A8ARM Cortex A8ARM Cortex A8ARM Cortex A8
RAM256 MB DDR3256 MB DDR3512 MB DDR3512 MB DDR3
Flash3GB3GB3GB3GB

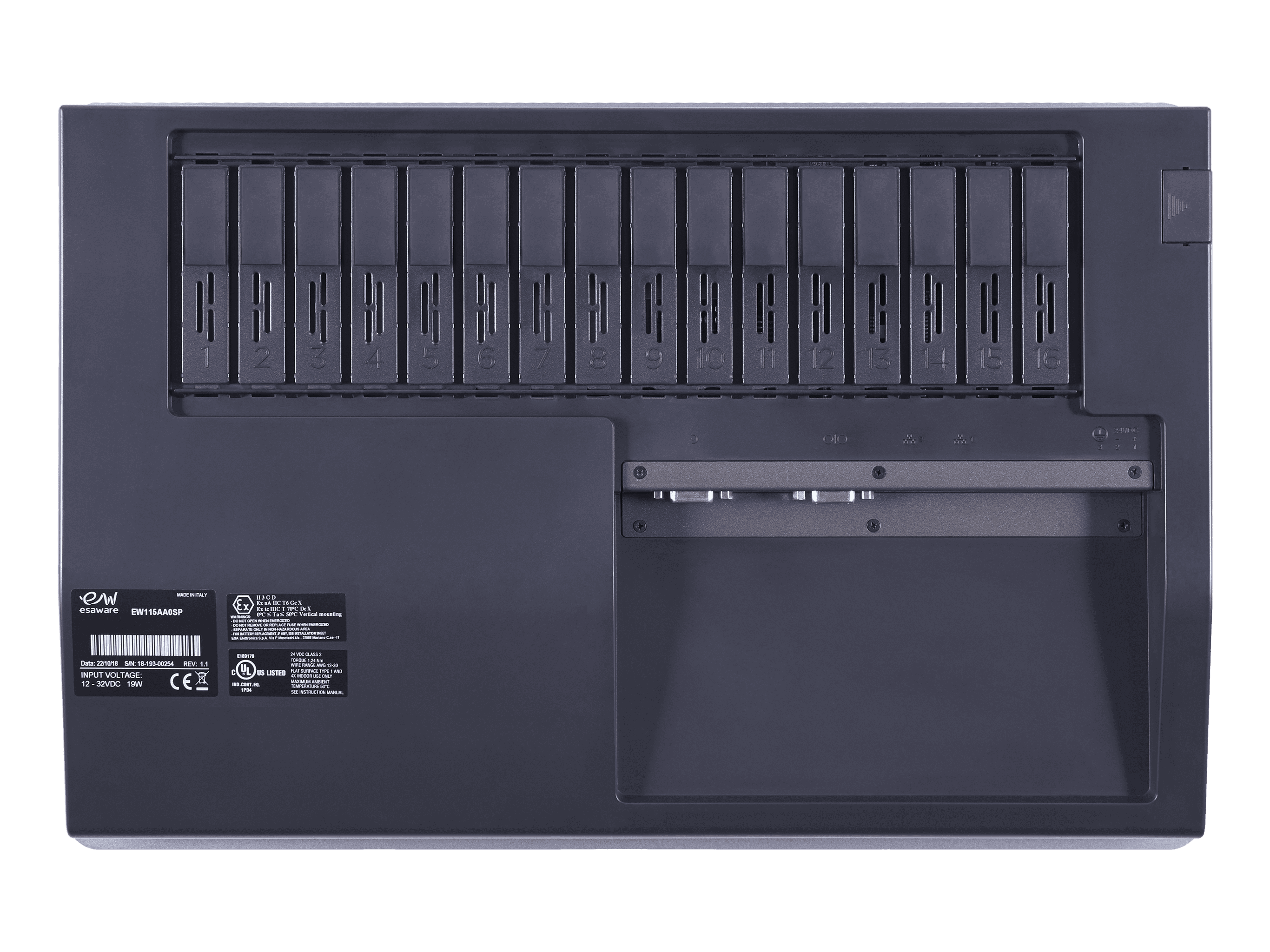

I/O slot 481216
NVRAM32Kb (SoftPLC)32Kb (SoftPLC)32Kb (SoftPLC)32Kb (SoftPLC)
Scan Time (μSec)Typical 30Typical 30Typical 30Typical 30
Serial PortsSP1 RS232/485-MPI-COM0 ; SP2 RS232/485-MPI-COM0 ; CAN ; ProfibusSP1 RS232/485-MPI-COM0 ; SP2 RS232/485-MPI-COM0 ; CAN ; ProfibusSP1 RS232/485-MPI-COM0 ; SP2 RS232/485-MPI-COM0 ; CAN ; ProfibusSP1 RS232/485-MPI-COM0 ; SP2 RS232/485-MPI-COM0 ; CAN ; Profibus
Ethernet 1 x 10/100Mb2 x 10/100Mb 2 x 10/100Mb 2 x 10/100Mb
USB Ports1 x USB Host + 1 x USB Device1 x USB Host + 1 x USB Device2 x USB Host + 1 x USB Device 2 x USB Host + 1 x USB Device
Slot1 x SDHC/MMC1 x SDHC/MMC1 x SDHC/MMC1 x SDHC/MMC
Power Supply (Vdc)18-3218-3218-3218-32
Consumption (W)471519
Operating Temperature (°C)-10 … + 50 (non condensing)-10 … + 50 (non condensing)-10 … + 50 (non condensing)-10 … + 50 (non condensing)
Storage Temperature (°C)-20 … + 65-20 … + 65-20 … + 65-20 … + 65
Humidity<90% (non condensing)<90% (non condensing)<90% (non condensing)<90% (non condensing)
External dimensions (W/H/D) (mm)166 x 112 x 45,9 (61 with double port)202 x 142 x 45,9341 x 239 x 48,6437 x 286 x 54,4
Cut-out dimensions (W/H) (mm) 158,5 x 104,5195 x 135326 x 227422,5 x 271,5
Weight (kg)0.50.82.54.5
Protection degree (front) IP 66IP 66IP 66IP 66
CertificationsCE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 / cULus (Certificate no. E189179) / EAC/ Directive 94/9/ATEX 2014/34/UE directive Group II Category 3 G D Zone 2/22CE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 / cULus (Certificate no. E189179) / EAC/ Directive 94/9/ATEX 2014/34/UE directive Group II Category 3 G D Zone 2/22CE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 / cULus (Certificate no. E189179) / EAC/ Directive 94/9/ATEX 2014/34/UE directive Group II Category 3 G D Zone 2/22CE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 / cULus (Certificate no. E189179) / EAC/ Directive 94/9/ATEX 2014/34/UE directive Group II Category 3 G D Zone 2/22

Bestellnummern

CODEDESCRIPTION
EW104AA0004,3" Wide TFT, 262K colors, CREW, SP1, ETH, USB A, USB B, MEMORY SLOT
EW104AA0SP4,3" Wide TFT, 262K colors, CREW, SP1, SP2, ETH, USB A, USB B, MEMORY SLOT
EW104AA0CN4,3" Wide TFT, 262K colors, CREW, SP1, CAN, ETH, USB A, USB B, MEMORY SLOT
EW104AA0DP4,3" Wide TFT, 262K colors, CREW, SP1, DP, ETH, USB A, USB B, MEMORY SLOT
EW107AA0007" Wide TFT, 16M colors, CREW, SP1, 2xETH, USB A, USB B, MEMORY SLOT
EW107AA0SP7" Wide TFT, 16M colors, CREW, SP1, SP2, 2xETH, USB A, USB B, MEMORY SLOT
EW107AA0CN7" Wide TFT, 16M colors, CREW, SP1, CAN, 2xETH, USB A, USB B, MEMORY SLOT
EW107AA0DP7" Wide TFT, 16M colors, CREW, SP1, DP, 2xETH, USB A, USB B, MEMORY SLOT
EW112AA0SP12,1" Wide TFT, 16M colors, CREW, SP1, SP2, 2xETH, USB A, USB B, MEMORY SLOT
EW112AA0CN12,1" Wide TFT, 16M colors, CREW, SP1, CAN, 2xETH, USB A, USB B, MEMORY SLOT
EW112AA0DP12,1" Wide TFT, 16M colors, CREW, SP1, DP, 2xETH, USB A, USB B, MEMORY SLOT
EW115AA0SP15,6" Wide TFT, 16M colors, CREW, SP1, SP2, 2xETH, USB A, USB B, MEMORY SLOT
EW115AA0CN15,6" Wide TFT, 16M colors, CREW, SP1, CAN, 2xETH, USB A, USB B, MEMORY SLOT
EW115AA0DP15,6" Wide TFT, 16M colors, CREW, SP1, DP, 2xETH, USB A, USB B, MEMORY SLOT
EW104AA0CN4,3" Wide TFT, 262K colors, CREW, SP1, CAN, ETH, USB A, USB B, MEMORY SLOT (NO ATEX)
ZH0EW104AA0CN4,3" Wide TFT, 262K colors, CREW, SP1, CAN, ETH, USB A, USB B, MEMORY SLOT (NO ATEX)
ZH0EW104AA0007" Wide TFT, 16M colors, CREW, SP1, 2xETH, USB A, USB B, MEMORY SLOT (NO ATEX)
ZH0EW107AA0007" Wide TFT, 16M colors, CREW, SP1, 2xETH, USB A, USB B, MEMORY SLOT (NO ATEX)
ZH0EW112AA0SP12,1" Wide TFT, 16M colors, CREW, SP1, SP2, 2xETH, USB A, USB B, MEMORY SLOT (NO ATEX)
ZH0EW112AA0DP12,1" Wide TFT, 16M colors, CREW, SP1, DP, 2xETH, USB A, USB B, MEMORY SLOT (NO ATEX)
