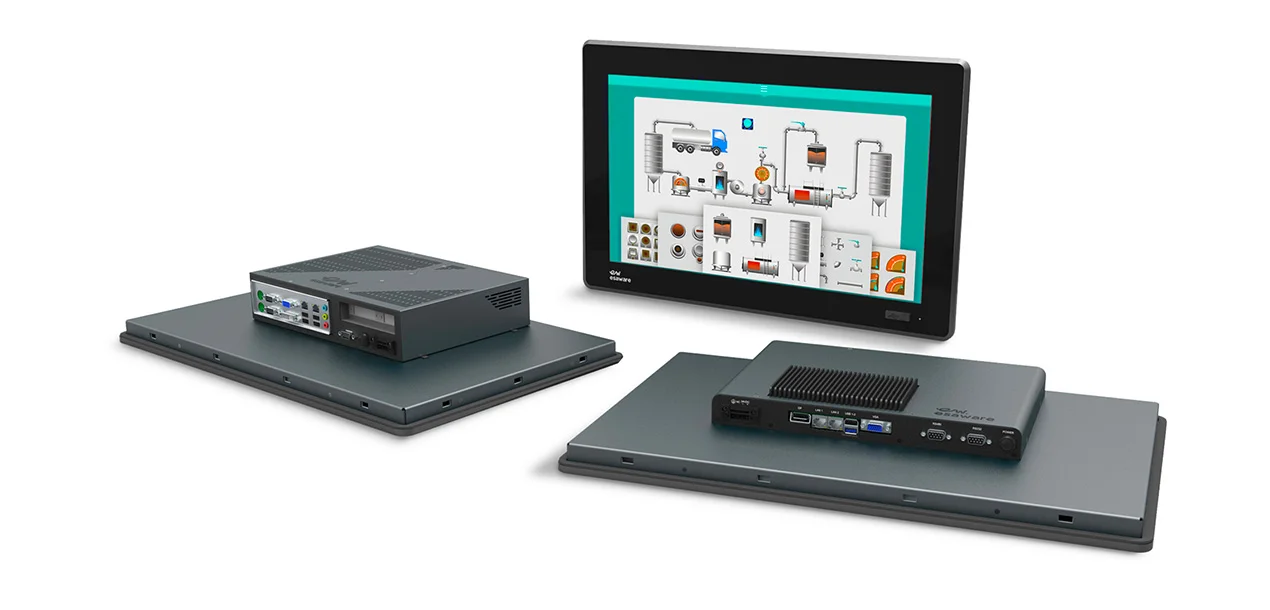

IPC EW
Industrial PC with capacitive and resistive touch
Featuring intuitive interface and innovative functionalities, EW Panel IPCs perfectly meet the need for digitalization and optimization of industrial processes.
Features
- LCD 16:9 widescreen display and resistive and capacitive touchscreen.
- Available in different sizes, from 12,1” to 21,5”.
- Our unique Twist design and the PTFE non-stick finish prevent dust and dirt accumulation.
- Wide choice of options and configurations.
EW200 MITX
| EW212 | EW215 | EW218 | EW222 | |
|---|---|---|---|---|
| Display Size | 12,1” | 15,6” | 18,5” | 21,5” |
| Display Technology | TFT / 16,7 M | TFT / 16,7 M | TFT / 16,7 M | TFT / 16,7 M |
| Display Brightness (cd/m²) | 400 | 300 | 300 | 300 |
| Contrast | 1000 | 500 | 1000 | 5000 |
| Viewing Angle | 88/88/88/88 | 85/85/85/85 | 85/85/80/80 | 89/89/89/89 |
| Display Resolution (pixel) | 1280x800 | 1366x768 | 1366x768 | 1920x1080 |
| Touch Technology | Resistive (5 wires) / Capacitive (PCT 10 touches) | Resistive (5 wires) / Capacitive (PCT 10 touches) | Resistive (5 wires) / Capacitive (PCT 10 touches) | Resistive (5 wires) / Capacitive (PCT 10 touches) |
| Bezel /Chassis | Aluminum - PTFE non-sticking coating/Sheet Steel | Aluminum - PTFE non-sticking coating/Sheet Steel | Aluminum - PTFE non-sticking coating/Sheet Steel | Aluminum - PTFE non-sticking coating/Sheet Steel |
| CPU Fanless Atom | Atom dual core N2800 1,86 GHz | Atom dual core N2800 1,86 GHz | Atom dual core N2800 1,86 GHz | Atom dual core N2800 1,86 GHz |
| CPU Fanless Celeron | Celeron Quad Core J1900 2,0 GHz | Celeron Quad Core J1900 2,0 GHz | Celeron Quad Core J1900 2,0 GHz | Celeron Quad Core J1900 2,0 GHz |
| CPU Fan Intel® Core™ 3G | Intel Core i3-3120ME 2,4GHz/ i5-3610ME 2,7GHz/ i7-3610QE 2,3 GHz | Intel Core i3-3120ME 2,4GHz/ i5-3610ME 2,7GHz/ i7-3610QE 2,3 GHz | Intel Core i3-3120ME 2,4GHz/ i5-3610ME 2,7GHz/ i7-3610QE 2,3 GHz | Intel Core i3-3120ME 2,4GHz/ i5-3610ME 2,7GHz/ i7-3610QE 2,3 GHz |
| CPU Fan Intel® Core™ 6G | Intel Celeron G3900TE 2,6GHz/ Intel Core i3-6100TE 2,7GHz/ i5-6500TE 2,3GHz/ i7-6700TE 2,4 GHz | Intel Celeron G3900TE 2,6GHz/ Intel Core i3-6100TE 2,7GHz/ i5-6500TE 2,3GHz/ i7-6700TE 2,4 GHz | Intel Celeron G3900TE 2,6GHz/ Intel Core i3-6100TE 2,7GHz/ i5-6500TE 2,3GHz/ i7-6700TE 2,4 GHz | Intel Celeron G3900TE 2,6GHz/ Intel Core i3-6100TE 2,7GHz/ i5-6500TE 2,3GHz/ i7-6700TE 2,4 GHz |
| Chipset | NM10 Atom / SoC / QM67 / Q170 | NM10 Atom / SoC / QM67 / Q170 | NM10 Atom / SoC / QM67 / Q170 | NM10 Atom / SoC / QM67 / Q170 |
| GPU embedded | GMA3650 650MHz / HD Graphics - 4000 / HD Graphics 9G 510-530 | GMA3650 650MHz / HD Graphics - 4000 / HD Graphics 9G 510-530 | GMA3650 650MHz / HD Graphics - 4000 / HD Graphics 9G 510-530 | GMA3650 650MHz / HD Graphics - 4000 / HD Graphics 9G 510-530 |
| RAM (Atom dual core) | up to 4GB DDR3 SODIMM 1066MHz 204 pin | up to 4GB DDR3 SODIMM 1066MHz 204 pin | up to 4GB DDR3 SODIMM 1066MHz 204 pin | up to 4GB DDR3 SODIMM 1066MHz 204 pin |
| RAM (Celeron Quad Core) | up to 8GB DDR3L SODIMM 1333MHz 204 pin | up to 8GB DDR3L SODIMM 1333MHz 204 pin | up to 8GB DDR3L SODIMM 1333MHz 204 pin | up to 8GB DDR3L SODIMM 1333MHz 204 pin |
| RAM (Fan Intel® Core™) 3G | up to 16GB DDR3 SODIMM 1333/1600MHz 204 pin | up to 16GB DDR3 SODIMM 1333/1600MHz 204 pin | up to 16GB DDR3 SODIMM 1333/1600MHz 204 pin | up to 16GB DDR3 SODIMM 1333/1600MHz 204 pin |
| RAM (Fan Intel® Core™) 6G | up to 32GB DDR4 SODIMM 1866/2133MHz 260 pin | up to 32GB DDR4 SODIMM 1866/2133MHz 260 pin | up to 32GB DDR4 SODIMM 1866/2133MHz 260 pin | up to 32GB DDR4 SODIMM 1866/2133MHz 260 pin |
| RS232 / RS485 | 2x RS232 + 1x RS232-422-485 | 2x RS232 + 1x RS232-422-485 | 2x RS232 + 1x RS232-422-485 | 2x RS232 + 1x RS232-422-485 |
| USB Port IP66 front | 1x -no capacitive- | 1x -no capacitive- | 1x -no capacitive- | 1x -no capacitive- |
| USB Ports 2.0/3.0 rear | 4/0 Atom - 3/1 Celeron - 4/0 iCore™ 3G – 0/4 I-Core 6G | 4/0 Atom - 3/1 Celeron - 4/0 iCore™ 3G – 0/4 I-Core 6G | 4/0 Atom - 3/1 Celeron - 4/0 iCore™ 3G – 0/4 I-Core 6G | 4/0 Atom - 3/1 Celeron - 4/0 iCore™ 3G – 0/4 I-Core 6G |
| Ethernet (Atom dual core) | 2x 1Gb RJ45 Intel 82574L | 2x 1Gb RJ45 Intel 82574L | 2x 1Gb RJ45 Intel 82574L | 2x 1Gb RJ45 Intel 82574L |
| Ethernet (Celeron quad core) | 2x 1Gb RJ45 Intel I210 | 2x 1Gb RJ45 Intel I210 | 2x 1Gb RJ45 Intel I210 | 2x 1Gb RJ45 Intel I210 |
| Ethernet (Fan iCore™) 3G | 2x 1Gb RJ45 Intel 82579LM / Realtek RTL8111DL | 2x 1Gb RJ45 Intel 82579LM / Realtek RTL8111DL | 2x 1Gb RJ45 Intel 82579LM / Realtek RTL8111DL | 2x 1Gb RJ45 Intel 82579LM / Realtek RTL8111DL |
| Ethernet (Fan iCore™) 6G | 2x 1Gb RJ45 Intel I210AT / I219LM | 2x 1Gb RJ45 Intel I210AT / I219LM | 2x 1Gb RJ45 Intel I210AT / I219LM | 2x 1Gb RJ45 Intel I210AT / I219LM |
| VGA/DVI-D (Atom dual core) | 1x / 1x (dimmable LCD backlit) | 1x / 1x (dimmable LCD backlit) | 1x / 1x (dimmable LCD backlit) | 1x / 1x (dimmable LCD backlit) |
| VGA/DVI-D (Celeron quad core) | 1x / 1x | 1x / 1x | 1x / 1x | 1x / 1x |
| VGA/DVI-D (Fan iCore™) 3G | 1x / 1x | 1x / 1x | 1x / 1x | 1x / 1x |
| DVI-D/HDMI (Fan iCore™) 6G | 1x / 1x | 1x / 1x | 1x / 1x | 1x / 1x |
| Audio / PS2 (no iCore 6G) | 1/0 (Atom-Celeron) – 1/1 (I-Core 3G) | 1/0 (Atom-Celeron) – 1/1 (I-Core 3G) | 1/0 (Atom-Celeron) – 1/1 (I-Core 3G) | 1/0 (Atom-Celeron) – 1/1 (I-Core 3G) |
| CFast slot | 1 x external accessible slot | 1 x external accessible slot | 1 x external accessible slot | 1 x external accessible slot |
| Mechanical Slot (optional) | 1x PCIe x1 - 1x miniPCIe - 1x PCIe x16 – 1x PCI | 1x PCIe x1 - 1x miniPCIe - 1x PCIe x16 – 1x PCI | 1x PCIe x1 - 1x miniPCIe - 1x PCIe x16 – 1x PCI | 1x PCIe x1 - 1x miniPCIe - 1x PCIe x16 – 1x PCI |
| Drives – RAID 0/1 | HDD min. 500GB / SSD min. 16GB / CFast min. 4GB - Option | HDD min. 500GB / SSD min. 16GB / CFast min. 4GB - Option | HDD min. 500GB / SSD min. 16GB / CFast min. 4GB - Option | HDD min. 500GB / SSD min. 16GB / CFast min. 4GB - Option |
| Power Supply (Vdc) | 18...30 VDC (25W-15” basic) | 18...30 VDC (25W-15” basic) | 18...30 VDC (25W-15” basic) | 18...30 VDC (25W-15” basic) |
| Consumption (W) | 25W – 65W | 25W – 65W | 25W – 65W | 25W – 65W |
| Operating Temperature (°C) | -10 … + 50 (non condensing) | -10 … + 50 (non condensing) | -10 … + 50 (non condensing) | -10 … + 50 (non condensing) |
| Storage Temperature (°C) | -20 … + 65 | -20 … + 65 | -20 … + 65 | -20 … + 65 |
| Humidity | 85% (non condensing) | 85% (non condensing) | 85% (non condensing) | 85% (non condensing) |
| External dimensions (W/H/D) (mm) | 340,5x238,5x87,8 (max) | 436,5x285,5x87,8(max) | 503,7x324,7x83,3 | 571,7x362,7x83,3 |
| Cut-out dimensions (W/H) (mm) | 326,0x227,0 | 422,5x271,5 | 486,5x307,5 | 554,5x345,5 |
| Weight (kg) | 4,5 | 6 | 8,5 | 10,5 |
| Protection degree (front) | IP66 | IP66 | IP66 | IP66 |
| Certifications | CE - EN61000-6-2 / EN61000-6-4 / EN60068-2-6/27/30 / cULus (Certificate no. E189179) / EAC / ATEX 2014/34/UE directive Group II Category 3 GD Zone 2/22 | CE - EN61000-6-2 / EN61000-6-4 / EN60068-2-6/27/30 / cULus (Certificate no. E189179) / EAC / ATEX 2014/34/UE directive Group II Category 3 GD Zone 2/22 | CE - EN61000-6-2 / EN61000-6-4 / EN60068-2-6/27/30 / cULus (Certificate no. E189179) / EAC / ATEX 2014/34/UE directive Group II Category 3 GD Zone 2/22 | CE - EN61000-6-2 / EN61000-6-4 / EN60068-2-6/27/30 / cULus (Certificate no. E189179) / EAC / ATEX 2014/34/UE directive Group II Category 3 GD Zone 2/22 |
EW200 SLIM
| EW212 | EW215 | EW218 | EW222 | |
|---|---|---|---|---|
| Display Size | 12,1” | 15,6” | 18,5” | 21,5” |
| Display Technology | TFT / 16,7 M | TFT / 16,7 M | TFT / 16,7 M | TFT / 16,7 M |
| Display Brightness (cd/m²) | 400 | 300 | 300 | 300 |
| Contrast | 1000:1 | 500:1 | 1000:1 | 5000:1 |
| Viewing Angle H-V | 88/88/88/88 | 85/85/85/85 | 85/85/80/80 | 89/89/89/89 |
| Display Resolution (pixel) | 1280x800 | 1366x768 | 1366x768 | 1920x1080 |
| Backlight life (hours) | 50K | 50K | 50K | 50K |
| Touch Technology | Resistive (5 wires) / Capacitive (PCT 10 touches) | Resistive (5 wires) / Capacitive (PCT 10 touches) | Resistive (5 wires) / Capacitive (PCT 10 touches) | Resistive (5 wires) / Capacitive (PCT 10 touches) |
| Bezel /Chassis | Aluminum - PTFE non-sticking coating/Sheet Steel | Aluminum - PTFE non-sticking coating/Sheet Steel | Aluminum - PTFE non-sticking coating/Sheet Steel | Aluminum - PTFE non-sticking coating/Sheet Steel |
| CPU Fanless Celeron 4G | Celeron quad core J1900 2,0 GHz (2,42GHz) – 10W | Celeron quad core J1900 2,0 GHz (2,42GHz) – 10W | Celeron quad core J1900 2,0 GHz (2,42GHz) – 10W | Celeron quad core J1900 2,0 GHz (2,42GHz) – 10W |
| CPU Fanless Celeron 6G | Celeron Quad Core J34551,5GHz(2,30 GHz) – 10W | Celeron Quad Core J34551,5GHz(2,30 GHz) – 10W | Celeron Quad Core J34551,5GHz(2,30 GHz) – 10W | Celeron Quad Core J34551,5GHz(2,30 GHz) – 10W |
| CPU Fanless Intel® Core™ 4G | Intel Core i3-4010U 1,7GHz / i7-4650U 1,7GHz (3,3GHz) – 15W | Intel Core i3-4010U 1,7GHz / i7-4650U 1,7GHz (3,3GHz) – 15W | Intel Core i3-4010U 1,7GHz / i7-4650U 1,7GHz (3,3GHz) – 15W | Intel Core i3-4010U 1,7GHz / i7-4650U 1,7GHz (3,3GHz) – 15W |
| CPU Fanless Intel Core 7G | Intel Core i3-7100U 2,4 GHz /i5-7300U 3,5 GHz / i7-7600U 2,8 GHz – 15W | Intel Core i3-7100U 2,4 GHz /i5-7300U 3,5 GHz / i7-7600U 2,8 GHz – 15W | Intel Core i3-7100U 2,4 GHz /i5-7300U 3,5 GHz / i7-7600U 2,8 GHz – 15W | Intel Core i3-7100U 2,4 GHz /i5-7300U 3,5 GHz / i7-7600U 2,8 GHz – 15W |
| Chipset | SoC | SoC | SoC | SoC |
| GPU embedded Celeron J1900 | HD Graphics | HD Graphics | HD Graphics | HD Graphics |
| GPU embedded i-core i3-4010U | HD Graphics 4400 | HD Graphics 4400 | HD Graphics 4400 | HD Graphics 4400 |
| GPU embedded i-code i5-7300U | HD Graphics 620 – up to 1,10 GHz | HD Graphics 620 – up to 1,10 GHz | HD Graphics 620 – up to 1,10 GHz | HD Graphics 620 – up to 1,10 GHz |
| GPU embedded i-core i7-4650U | HD Graphics 5000 | HD Graphics 5000 | HD Graphics 5000 | HD Graphics 5000 |
| RAM (Celeron quad core) | on board 4GB DDR3L 1066/1333MHz - dual channel - | on board 4GB DDR3L 1066/1333MHz - dual channel - | on board 4GB DDR3L 1066/1333MHz - dual channel - | on board 4GB DDR3L 1066/1333MHz - dual channel - |
| RAM (Fanless Intel® Core™) | up to 8GB DDR3L SODIMM 1333/1600MHz 204 pin -single channel- | up to 8GB DDR3L SODIMM 1333/1600MHz 204 pin -single channel- | up to 8GB DDR3L SODIMM 1333/1600MHz 204 pin -single channel- | up to 8GB DDR3L SODIMM 1333/1600MHz 204 pin -single channel- |
| RS232 / RS485 | 1x RS232 + 1x RS485 | 1x RS232 + 1x RS485 | 1x RS232 + 1x RS485 | 1x RS232 + 1x RS485 |
| USB Port IP66 front | 1x -no capacitive- | 1x -no capacitive- | 1x -no capacitive- | 1x -no capacitive- |
| USB Ports 2.0/3.0 rear | 1x 2.0 + 1x 3.0 cpu J1900 / 4x 3.0 cpu Intel®Core™ | 1x 2.0 + 1x 3.0 cpu J1900 / 4x 3.0 cpu Intel®Core™ | 1x 2.0 + 1x 3.0 cpu J1900 / 4x 3.0 cpu Intel®Core™ | 1x 2.0 + 1x 3.0 cpu J1900 / 4x 3.0 cpu Intel®Core™ |
| Ethernet Celeron J1900 | 2x 1Gb RJ45 Intel I210 | 2x 1Gb RJ45 Intel I210 | 2x 1Gb RJ45 Intel I210 | 2x 1Gb RJ45 Intel I210 |
| Ethernet i-Core™ i3/i7 | 2x 1Gb RJ45 Intel I210/I218 | 2x 1Gb RJ45 Intel I210/I218 | 2x 1Gb RJ45 Intel I210/I218 | 2x 1Gb RJ45 Intel I210/I218 |
| VGA/DP ( Celeron J1900) | 1x / 1x (DP passive cable required) | 1x / 1x (DP passive cable required) | 1x / 1x (DP passive cable required) | 1x / 1x (DP passive cable required) |
| DP (i-Core™ i3/i5/i7) | 2x (DP active cable required) | 2x (DP active cable required) | 2x (DP active cable required) | 2x (DP active cable required) |
| RAID 0/1 | 2x SSD on cpu i-core / 2x mSATA on cpu J1900 | 2x SSD on cpu i-core / 2x mSATA on cpu J1900 | 2x SSD on cpu i-core / 2x mSATA on cpu J1900 | 2x SSD on cpu i-core / 2x mSATA on cpu J1900 |
| Expansion Slot | 1x miniPCIe CPU J1900 / 2x miniPCIe CPU i-Core | 1x miniPCIe CPU J1900 / 2x miniPCIe CPU i-Core | 1x miniPCIe CPU J1900 / 2x miniPCIe CPU i-Core | 1x miniPCIe CPU J1900 / 2x miniPCIe CPU i-Core |
| Drives externally accessible | CFast slot (option) | CFast slot (option) | CFast slot (option) | CFast slot (option) |
| Drives (internal) | HDD min. 500GB / SSD min. 16GB / mSATA min.32GB (options) | HDD min. 500GB / SSD min. 16GB / mSATA min.32GB (options) | HDD min. 500GB / SSD min. 16GB / mSATA min.32GB (options) | HDD min. 500GB / SSD min. 16GB / mSATA min.32GB (options) |
| Power Supply (Vdc) | 15...36 VDC (25W-15” basic) | 15...36 VDC (25W-15” basic) | 15...36 VDC (25W-15” basic) | 15...36 VDC (25W-15” basic) |
| Consumption (W) | 25 - 50 | 25 - 50 | 25 - 50 | 25 - 50 |
| Operating Temperature (°C) | -10 … + 50 (non condensing) | -10 … + 50 (non condensing) | -10 … + 50 (non condensing) | -10 … + 50 (non condensing) |
| Storage Temperature (°C) | -20 … + 65 | -20 … + 65 | -20 … + 65 | -20 … + 65 |
| Humidity | 90% (non condensing) | 90% (non condensing) | 90% (non condensing) | 90% (non condensing) |
| External dimensions (W/H/D) (mm) | 340,5x238,5x66,6 (max) | 436,5x285,5x66,6 (max) | 503,7x324,7x62,1 | 571,7x362,7x62,1 |
| Cut-out dimensions (W/H) (mm) | 326,0x227,0 | 422,5x271,5 | 486,5x307,5 | 554,5x345,5 |
| Weight (kg) | 4,5 | 6 | 8,5 | 10,5 |
| Operating systems | WIN7-WES7-WIN8.1 | WIN7-WES7-WIN8.1 | WIN7-WES7-WIN8.1 | WIN7-WES7-WIN8.1 |
| Protection degree (front) | IP66 | IP66 | IP66 | IP66 |
| Certifications | CE / EN61000-6-2 / EN61000-6-4 / EN60068-2-6 / EN60068-2-6/27/30 / cULus (Certificate no. E189179) / EAC / ATEX 2014/34/UE directive Group II Category 3 G D Zone 2/22 | CE / EN61000-6-2 / EN61000-6-4 / EN60068-2-6 / EN60068-2-6/27/30 / cULus (Certificate no. E189179) / EAC / ATEX 2014/34/UE directive Group II Category 3 G D Zone 2/22 | CE / EN61000-6-2 / EN61000-6-4 / EN60068-2-6 / EN60068-2-6/27/30 / cULus (Certificate no. E189179) / EAC / ATEX 2014/34/UE directive Group II Category 3 G D Zone 2/22 | CE / EN61000-6-2 / EN61000-6-4 / EN60068-2-6 / EN60068-2-6/27/30 / cULus (Certificate no. E189179) / EAC / ATEX 2014/34/UE directive Group II Category 3 G D Zone 2/22 |
