LUMIA WebHMI

Web-based display

Lumia WebHMI redefines data presentation following a paradigm of openness, flexibility, scalability and security, taking full advantage of web technologies.
Easy access: Access via standard browsers without the need for plug-ins.
Flexibility: Native support for Windows and Linux.
Scalability: SVG graphics and responsive design ensure that pages remain sharp regardless of resolution and orientation.
Security: Web technologies are constantly updated thanks to the large developer community, ensuring the highest level of security.

  1. 1
  2. 2
  3. 3
  4. 4

Features

  • Operating system: Linux Debian 11
  • Display: High-resolution and brightness wide screen, available in 7”, 10.1”, 15.6”, 21.5”, 27” formats
  • Design: Full glass front with capacitive touch
  • Processor: Fanless Rockchip RK3399 – RK3568
  • Connectivity: Integrated dual band client WiFi (2.5GHz – 5GHz), 2 LAN ports, 2 USB ports (3.0 and 2.0)
  • Memory: RAM 2GB DDR4 – 4GB DDR4, 16GB internal memory

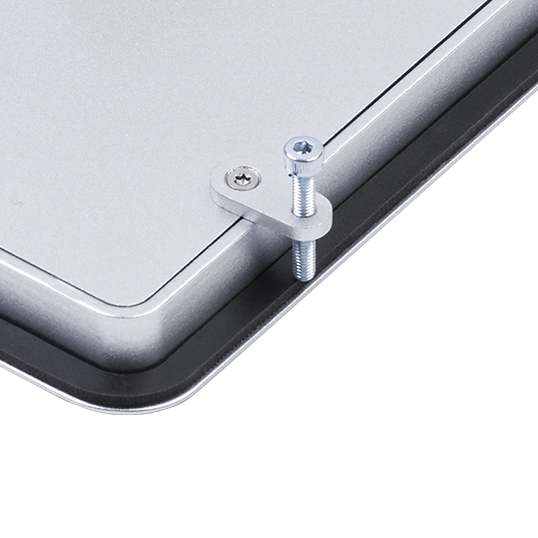

  • Installation: Panel installation with IP66 protection rating on the front
  • Accessories: Optional PBOX keypad (panel mounting)
  • User interface: Control panel for programming parameters without access to the operating system
  • Display: Web pages automatically displayed in full screen mode (KIOSK MODE), preventing the operator from accessing the operating system
  • Browser: Use of Chromium to display web pages
