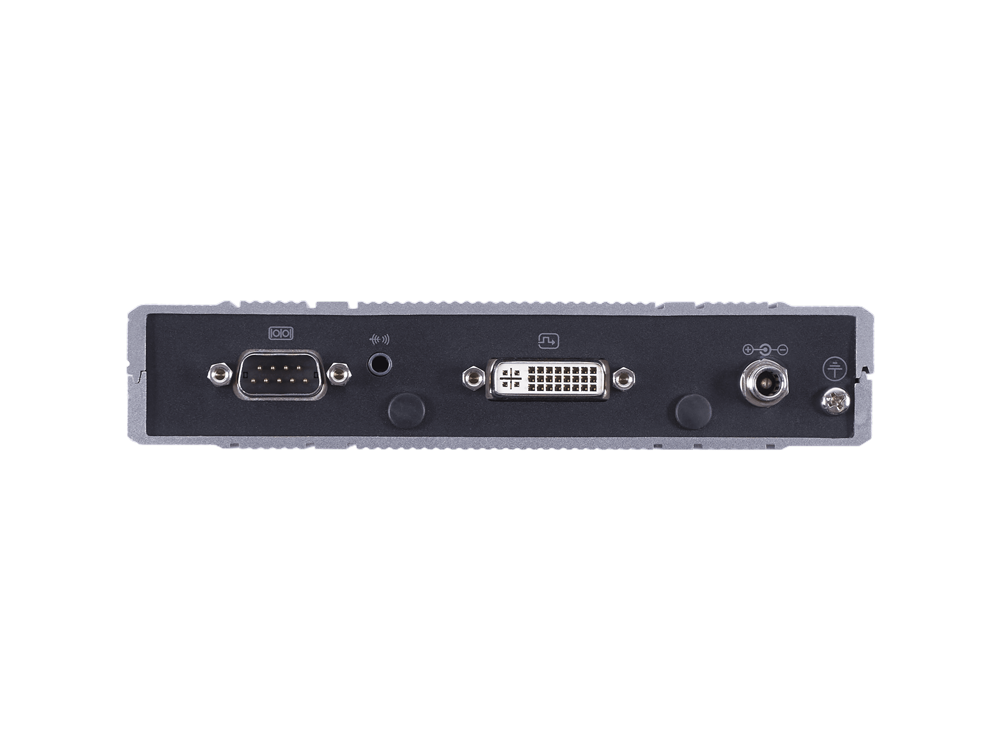

EW410
超紧凑型 IPC 盒
搭载低功耗高性能处理器的嵌入式工控主机， 超小尺寸，超宽操作温度和抗震。
工业应用和恶劣环境下的理想选择
Features
- 极小尺寸
- 无风扇静音设计
- 高性能处理器
- 灵活多样的配置（内存，硬盘，操作系统）
- 宽温
- 宽压
EW410NF2 / EW410NF6
| EW410NF6 | EW410NF2 | |
|---|---|---|
| Aluminium Enclosure | Heavy alu extrusion chassis Aluminum Heat-Sink LED green on/off Selection ATX/APO via Bios On/Off push-button LED blue HDD Lockable power connector Wall/VESA/DIN rail - mounting options | Heavy alu extrusion chassis Aluminum Heat-Sink LED green on/off Selection ATX/APO via Bios On/Off push-button LED blue HDD Lockable power connector Wall/VESA/DIN rail - mounting options |
| CPU Fanless | Celeron Quad Core J1900 2,00 GHz | Atom Dual Core D2550 1,86 GHz |
| Chipset | SoC | NM10 DMI 2,5GT/s |
| GPU embedded | HD Graphics Resolution 1920 x 1080 DVI Resolution 2560 x 1600 VGA | GMA3650 Resolution 1920 x 1080 DVI /VGA |
| RAM | RAM 4GB DDR3L 1066 MHz on board | RAM 2GB DDR3 1066 MHz on board |
| I/F | 2 x RS232/422/485 Sub-D 9 pin 1 x RS232/422/485 8-bit DIO 9 pin 4 x USB ver. 2.0 1 x USB ver. 3.0 1 x DVI-I 4 x Ethernet 1 Gbit RJ45 - Intel I210 2 x MiniPCle slot (1x mSATA) 1 x SIM slot RS485 Auto Direct.Control | 2 x RS232/422/485 Sub-D 9 pin 4 x USB ver. 2.0 2 x Ethernet 1 Gbit RJ45 - Intel 82574L 3 x MiniPCle slot (1x mSATA) 1 x DVI-I 1 x Line Out / Mic In 1 x CFast slot external access 1 x SIM slot RS485 Auto Direct.Control |
| Drives | mSATA/SSD/HDD | CFast/mSATA |
| Operating Temperature (°C) | 0…+60 (non condensing) | 0…+60 (non condensing) |
| StorageTemperature (°C) | -20…+80 | -20…+80 |
| Humidity | 85% (non condensing) | 85% (non condensing) |
| Weight (kg) | 0,8 | 0,7 |
| Power supply (Vdc) | 9 ... 36 max 20W | 9 ... 26 max 20W |
| Dimensions (W/H/D) (mm) | 180x121x33 | 161x108x32 |
| Operating Systems | WIN7 - WES7 – WIN8.1 – WIN10 – UBUNTU 14 | WIN7 - WES7 - WES2009 – UBUNTU 12 |
| Protection degree | IP20 | IP20 |
| Certifications | CE - EN61000-6-2 / EN61000-6-4 / EAC | CE - EN61000-6-2 / EN61000-6-4 / EAC |
EW410NF7
| EW410NF73D000 | |
|---|---|
| Enclosure | Heavy alu extrusion chassis Alluminium heat-sink 1x power led 1x Status led Lockable power connector Wall/VESA/DIN Rail Mounting option |
| CPU fanless | Intel Celeron J3455E Quad Core, 2M Cache, 1.5GHz (2.3 GHz) |
| Chipset | SoC |
| Embedded GPU | HDMI: resolution up to 3840x2160 DP: resolution up to 4096 x 2160 VGA: resolution up to 1920 x 1200 |
| RAM | DDR3L 8GB SO-DIMM |
| Front I/O | Ethernet: 1 x GbE (RJ45) Serial: 2 x RS232/485 (DB9) Display: 1 x VGA - 1 x DP/HDMI combo Buttons: 1xPower - 1xReset Wi-Fi Antenna 3 x Wi-Fi Antenna Holes |
| Rear I/O | Ethernet: 3 x Gbe LAN (RJ45) USB: 2 x 3.0 Serial: 2 x RS232/RS422/RS485 (DB9) |
| Drives options | SATA: SSD 128GB, 256GB, 512GB, 1TB HDD 500GB, 1TB |
| Operating system | W10 IoT 64bit LTSC 2019 Linux support |
| Operating temperature (°C) | -20 .... +60 |
| Storage temperature (°C) | -40..+85 |
| Humidity | < 95% (non condensing) |
| Weight (kg) | 0,7 |
| Power supply | 9 ~ 36 VDC |
| Dimensions (WxHxD) | 180mm x 33mm x 121,2mm |
| Protection degree | IP30 |
| Certifications | CE / EN 61000-6-2 / EN 61000-6-4 , FCC class A / UL |
