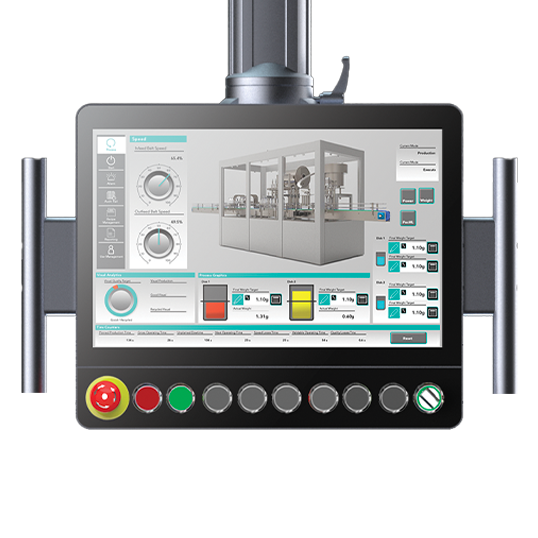

Lumia ARM Web HMI 系列提供了先进的远程监管和控制解决方案，配备一个臂架固定系统，便于轻松安装在操控台或控制工位上。得益于强大的 Rockchip 多核处理器（多达 6 核）和无风扇设计的 Linux Debian 11 操作系统，该 Web HMI 能够确保极高的操作性能，并且与最新的网络服务器兼容。两个独立的 LAN 端口使得机器网络（OT）与客户的基础设施（IT）实现物理隔离，从而提高了安全性和操作效率。
| ARM webHMI | |
|---|---|
| O.S. | Linux Debian 11 + Chromium 114 |
| Display Size | 15,6” (1920x 1080) |
| 21,5” (1920x 1080) | |
| 27” (1920 x 1080) | |
| Display technology | TFT |
| Display Backlight | Led |
| Display Colors | 16M |
| Touch Technology | Capacitive |
| Bezel / Chassis | Alluminium |
| Processor | RK3399 |
| Dual-core Cortex-A72 + | |
| Quad-core Cortex-A53 | |
| Chipset | SoC |
| RAM | 2 GB DDR4 |
| Mass storage | 16GB eMMC |
| Ethernet Port | 1*1GB + 1*100MB |
| USB Port | 1x2.0 + 1x3.0 |
| Wifi | 2,5 / 5 GHz client mode |
| Power Supply (Vdc) | 12 – 32V DC |
| Consumption (W) | 18W 15,6” |
| 28W 21” | |
| 28W 27” | |
| Operating temperature | 0 … + 50 °C |
| Storage Temperature (°C) | -20 … + 60 °C |
| Humidity | <90% (non condensing) |
| External dimensions(W/H/D) (mm) | 15,6” 389,40 x 328,30 x 126,99 |
| 21.5” 527,84 x 405,10 x 126,99 | |
| 27” 645,40 x 469,25 x 126,99 | |
| Weight (kg) | 15” 6,5 |
| 21,5 8KG | |
| 27” 10Kg | |
| Protection degree | IP66 all around |
