ECO Tech
Flessibilità e immediatezza

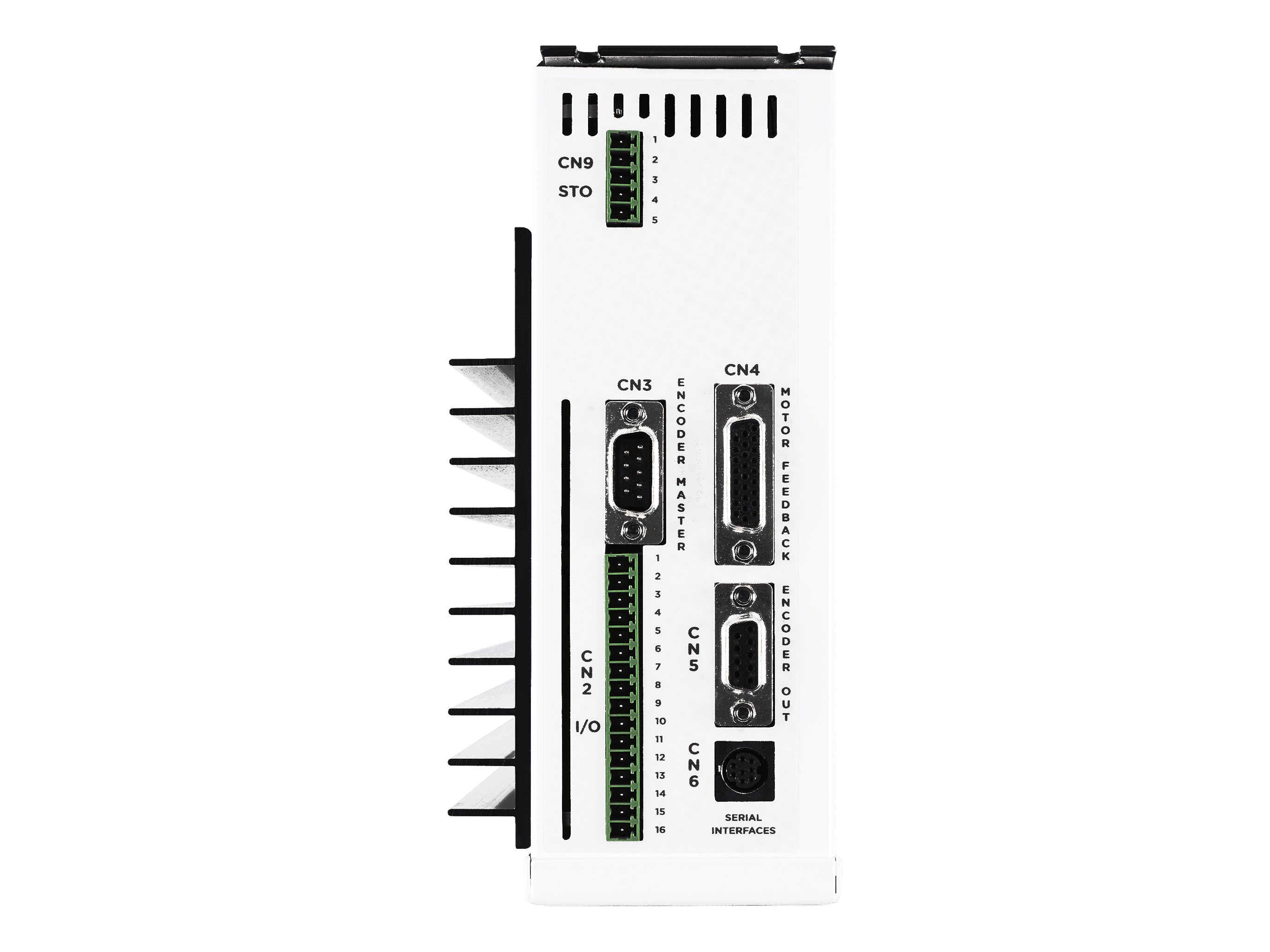

Un servoazionamento progettato per controllare e pilotare un’ampia gamma di motori brushless e asincroni. A distinguerlo è l’incredibile semplicità di installazione e messa in servizio.
Caratteristiche
- Retroazioni: Encoder incrementale, encoder assoluto BiSS, resolver, Hiperface DSL
- Bus di campo: CAN Open DS402, EtherCAT o ModBUS RTU
- 12 ingressi digitali / 4 uscite digitali
- 2 ingressi analogici
- Grado di protezione: IP20
- Certificazione: CE
- Circuito di sicurezza Safety Torque Off
- Elevata capacità di sovraccarico
- Controllo motori brushless a partire da 0,7 fino a 1000 Nm e motori asincroni.
- Potenza da 1kW a 30kW alimentazione 230/400Vac trifase
- Facilità di installazione e messa in servizio grazie all’impostazione 1 digit del firmware.
9XECO2T0410.. - 9XECO2T0615..
| | 9XECO2T0410.. | 9XECO2T0615.. |
|---|---|---|
| Supply Voltage Power Stage (Vac) | 1/3 x 230 |
|
| Supply Frequency (Hz) | 50/60 |
|
| Voltage Supply Control Stage (Vac) | 24 |
|
| Output Power (kW) | 1,0 | 1,7 |
| Continuous Output Current (ARMS) | 4 | 6 |
| Peak Output Current (for 2 s) (ARMS) | 10 | 15 |
| Output Frequency (Hz) | Up to 300 |
|
| Switching Frequency PWM (kHz) | 8 |
|
| Analogue Input | 1 x +/- 10 V and 1 x 0 - 10 V |
|
| Analogue Output | No |
|
| Digital Input | 12 x +24 Vdc (programmable) |
|
| Digital Output | 5 x +24 Vdc 0,5 A (Drive OK + programmable) |
|
| Status Led | No |
|
| Keypad | Yes |
|
| Encoder Input | TTL Incremental 5V LD (2048 - 5000 - 4096 ppr) or BiSS absolute (with option board) or Hyperface DSL or Sin/Cos or Resolver |
|
| Encoder Output | Yes |
|
| FieldBUS | CANopen DS402 - Mod BUS IP - S-NET - S-CAN - EtherCAT - Ethernet IP - Profinet 10 |
|
| Functions | Analog Input - Pulse - Electronic Gearbox - Electronic CAM - Stand Alone Positioner - MSQ - FieldBus Drive |
|
| Protection | 12T, thermal, overvoltage, undervoltage, short-circuit |
|
| Connection Type | Connectors |
|
| Brake management | On integrated brake resistor or external brake resistor |
|
| Motor types | AC Brushless sinusoidal, Asynchronous AC |
|
| Configuration drive | With Drivewatcher Software or keypad on board |
|
| Power Loss (W) | 19 @ I nominal | 26 @ 1 nominal |
| Operating Temperature (°C) | 0 ... + 40 (de-rate by 50% up to 55°C) |
|
| Storage Temperature (°C) | -25 ... + 85 |
|
| Humidity | 5% .. 95% (not condensing) |
|
| Altitude | Up to 1000 m above sea level without derating |
|
| Weight (kg) | 1,3 | 1,5 |
| Protection degree | IP 20 |
|
| Certifications | 2014/35/UE - 2014/30/UE - 2011/65/EU CEI EN 61800-3 2005 - CEI EN 61800-2 - El EN 61800-5-1 2009 |
|
| UL Certification | NO |
|
9XECO4T0410.. - 9XECO4T0512..
| | 9XECO4T0410.. | 9XECO4T0512.. |
|---|---|---|
| Supply Voltage Power Stage (Vac) | 3 x 400 |
|
| Supply Frequency (Hz) | 50/60 |
|
| Voltage Supply Control Stage (Vac) | 24 |
|
| Output Power (kW) | 2,2 | 2,7 |
| Continuous Output Current (ARMS) | 4 | 5 |
| Peak Output Current (for 2 s) (ARMS) | 10 | 12 |
| Output Frequency (Hz) | Up to 300 |
|
| Switching Frequency PWM (kHz) | 8 |
|
| Analogue Input | 1 x +/- 10 V and 1 x 0 - 10 V |
|
| Analogue Output | No |
|
| Digital Input | 12 x +24 Vdc (programmable) |
|
| Digital Output | 5 x +24 Vdc 0,5 A (Drive OK + programmable) |
|
| Status Led | No |
|
| Keypad | Yes |
|
| Encoder Input | TTL Incremental 5V LD (2048 - 5000 - 4096 ppr) or BiSS absolute (with option board) or Hyperface DSL or Sin/Cos or Resolver |
|
| Encoder Output | Yes |
|
| FieldBUS | CANopen DS402 - Mod BUS IP - S-NET - S-CAN - EtherCAT - Ethernet IP - Profinet 10 |
|
| Functions | Analog Input - Pulse - Electronic Gearbox - Electronic CAM - Stand Alone Positioner - MSQ - FieldBus Drive |
|
| Protection | 12T, thermal, overvoltage, undervoltage, short-circuit |
|
| Connection Type | Connectors |
|
| Brake management | On integrated brake resistor or external brake resistor |
|
| Motor types | AC Brushless sinusoidal, Asynchronous AC |
|
| Configuration drive | With Drivewatcher Software or keypad on board |
|
| Power Loss (W) | 25 @ I nominal | 31 @ I nominal |
| Operating Temperature (°C) | 0 ... + 40 (de-rate by 50% up to 55°C) |
|
| Storage Temperature (°C) | -25 ... + 85 |
|
| Humidity | 5% .. 95% (not condensing) |
|
| Altitude | Up to 1000 m above sea level without derating |
|
| Weight (kg) | 2,2 | 2,5 |
| Protection degree | IP 20 |
|
| Certifications | 2014/35/UE - 2014/30/UE - 2011/65/EU CEI EN 61800-3 2005 - CEI EN 61800-2 - El EN 61800-5-1 2009 |
|
| UL Certification | NO |
|
9XECO4T1020.. - 9XECO4T2040..
| | 9XECO4T1020.. | 9XECO4T2040.. |
|---|---|---|
| Supply Voltage Power Stage (Vac) | 3 x 400 |
|
| Supply Frequency (Hz) | 50/60 |
|
| Voltage Supply Control Stage (Vac) | 24 |
|
| Output Power (kW) | 4,5 | 9,0 |
| Continuous Output Current (ARMS) | 10 | 20 |
| Peak Output Current (for 2 s) (ARMS) | 20 | 40 |
| Output Frequency (Hz) | Up to 300 |
|
| Switching Frequency PWM (kHz) | 8 |
|
| Analogue Input | 1 x +/- 10 V and 1 x 0 - 10 V |
|
| Analogue Output | No |
|
| Digital Input | 12 x +24 Vdc (programmable) |
|
| Digital Output | 5 x +24 Vdc 0,5 A (Drive OK + programmable) |
|
| Status Led | No |
|
| Keypad | Yes |
|
| Encoder Input | TTL Incremental 5V LD (2048 - 5000 - 4096 ppr) or BiSS absolute (with option board) or Hyperface DSL or Sin/Cos or Resolver |
|
| Encoder Output | Yes |
|
| FieldBUS | CANopen DS402 - Mod BUS IP - S-NET - S-CAN - EtherCAT - Ethernet IP - Profinet 10 |
|
| Functions | Analog Input - Pulse - Electronic Gearbox - Electronic CAM - Stand Alone Positioner - MSQ - FieldBus Drive |
|
| Protection | 12T, thermal, overvoltage, undervoltage, short-circuit |
|
| Connection Type | Connectors |
|
| Brake management | On integrated brake resistor or external brake resistor |
|
| Motor types | AC Brushless sinusoidal, Asynchronous AC |
|
| Configuration drive | With Drivewatcher Software or keypad on board |
|
| Power Loss (W) | 56 @ I nominal | 103 @ I nominal |
| Operating Temperature (°C) | 0 ... + 40 (de-rate by 50% up to 55°C) |
|
| Storage Temperature (°C) | -25 ... + 85 |
|
| Humidity | 5% .. 95% (not condensing) |
|
| Altitude | Up to 1000 m above sea level without derating |
|
| Weight (kg) | 4,2 | 7,5 |
| Protection degree | IP 20 |
|
| Certifications | 2014/35/UE - 2014/30/UE - 2011/65/EU CEI EN 61800-3 2005 - CEI EN 61800-2 - El EN 61800-5-1 2009 |
|
| UL Certification | NO |
|
9XECO4T2550.. - 9XECO4T3090..
| | 9XECO4T2550.. | 9XECO4T3090.. |
|---|---|---|
| Supply Voltage Power Stage (Vac) | 3 x 400 |
|
| Supply Frequency (Hz) | 50/60 |
|
| Voltage Supply Control Stage (Vac) | 24 |
|
| Output Power (kW) | 11,2 | 13,5 |
| Continuous Output Current (ARMS) | 25 | 30 |
| Peak Output Current (for 2 s) (ARMS) | 50 | 90 |
| Output Frequency (Hz) | Up to 300 |
|
| Switching Frequency PWM (kHz) | 8 |
|
| Analogue Input | 1 x +/- 10 V and 1 x 0 - 10 V |
|
| Analogue Output | No |
|
| Digital Input | 12 x +24 Vdc (programmable) |
|
| Digital Output | 5 x +24 Vdc 0,5 A (Drive OK + programmable) |
|
| Status Led | No |
|
| Keypad | Yes |
|
| Encoder Input | TTL Incremental 5V LD (2048 - 5000 - 4096 ppr) or BiSS absolute (with option board) or Hyperface DSL or Sin/Cos or Resolver |
|
| Encoder Output | Yes |
|
| FieldBUS | CANopen DS402 - Mod BUS IP - S-NET - S-CAN - EtherCAT - Ethernet IP - Profinet 10 |
|
| Functions | Analog Input - Pulse - Electronic Gearbox - Electronic CAM - Stand Alone Positioner - MSQ - FieldBus Drive |
|
| Protection | 12T, thermal, overvoltage, undervoltage, short-circuit |
|
| Connection Type | Connectors |
|
| Brake management | On integrated brake resistor or external brake resistor |
|
| Motor types | AC Brushless sinusoidal, Asynchronous AC |
|
| Configuration drive | With Drivewatcher Software or keypad on board |
|
| Power Loss (W) | 140 @ I nominal | 190 @ I nominal |
| Operating Temperature (°C) | 0 ... + 40 (de-rate by 50% up to 55°C) |
|
| Storage Temperature (°C) | -25 ... + 85 |
|
| Humidity | 5% .. 95% (not condensing) |
|
| Altitude | Up to 1000 m above sea level without derating |
|
| Weight (kg) | 8,5 | 9,7 |
| Protection degree | IP 20 |
|
| Certifications | 2014/35/UE - 2014/30/UE - 2011/65/EU CEI EN 61800-3 2005 - CEI EN 61800-2 - El EN 61800-5-1 2009 |
|
| UL Certification | NO |
|
9XECO4T40120.. - 9XECO4T60180..
| | 9XECO4T40120.. | 9XECO4T60180.. |
|---|---|---|
| Supply Voltage Power Stage (Vac) | 3 x 400 |
|
| Supply Frequency (Hz) | 50/60 |
|
| Voltage Supply Control Stage (Vac) | 24 |
|
| Output Power (kW) | 18,0 | 27,0 |
| Continuous Output Current (ARMS) | 40 | 60 |
| Peak Output Current (for 2 s) (ARMS) | 120 | 180 |
| Output Frequency (Hz) | Up to 300 |
|
| Switching Frequency PWM (kHz) | 8 |
|
| Analogue Input | 1 x +/- 10 V and 1 x 0 - 10 V |
|
| Analogue Output | No |
|
| Digital Input | 12 x +24 Vdc (programmable) |
|
| Digital Output | 5 x +24 Vdc 0,5 A (Drive OK + programmable) |
|
| Status Led | No |
|
| Keypad | Yes |
|
| Encoder Input | TTL Incremental 5V LD (2048 - 5000 - 4096 ppr) or BiSS absolute (with option board) or Hyperface DSL or Sin/Cos or Resolver |
|
| Encoder Output | Yes |
|
| FieldBUS | CANopen DS402 - Mod BUS IP - S-NET - S-CAN - EtherCAT - Ethernet IP - Profinet 10 |
|
| Functions | Analog Input - Pulse - Electronic Gearbox - Electronic CAM - Stand Alone Positioner - MSQ - FieldBus Drive |
|
| Protection | 12T, thermal, overvoltage, undervoltage, short-circuit |
|
| Connection Type | Connectors |
|
| Brake management | On integrated brake resistor or external brake resistor |
|
| Motor types | AC Brushless sinusoidal, Asynchronous AC |
|
| Configuration drive | With Drivewatcher Software or keypad on board |
|
| Power Loss (W) | 220 @ I nominal | 280 @ I nominal |
| Operating Temperature (°C) | 0 ... + 40 (de-rate by 50% up to 55°C) |
|
| Storage Temperature (°C) | -25 ... + 85 |
|
| Humidity | 5% .. 95% (not condensing) |
|
| Altitude | Up to 1000 m above sea level without derating |
|
| Weight (kg) | 23 | 23 |
| Protection degree | IP 20 |
|
| Certifications | 2014/35/UE - 2014/30/UE - 2011/65/EU CEI EN 61800-3 2005 - CEI EN 61800-2 - El EN 61800-5-1 2009 |
|
| UL Certification | NO |
|
