EW8ET
Accessori per l’energy management
Una gamma completa di accessori per il sistema ESA di misura e monitoraggio dei consumi energetici.
Features
- Trasformatori di corrente
- Sensori di Rogowski
- Trasformatori di tensione
EW8ETA
Trasformatori di corrente compatti
Scarica pdf
| EW8ETA | |||
|---|---|---|---|
| Type | Compact Current Transformers | Accuracy | |
| 1# size | Rated Current | 150A | 0,5% |
| 2# size | Rated Current | 250A 500A 1.000 A | 0,5% |
| 3# size | Rated Current | 500A 1.000A | 0,5% |
| 4# size | Rated Current | 2.000A | 0,5% |
EW8ETB
Trasformatori di corrente apribili
Scarica pdf
| EW8ETB | |||
|---|---|---|---|
| Type | Split-Cote Current Transformers | Accuracy | |
| 1# size | Rated Current | 100A 250A | 0,5% |
| 2# size | Rated Current | 500A 1.000 A | 0,5% |
| 3# size | Rated Current | 1.000A | 0,5% |

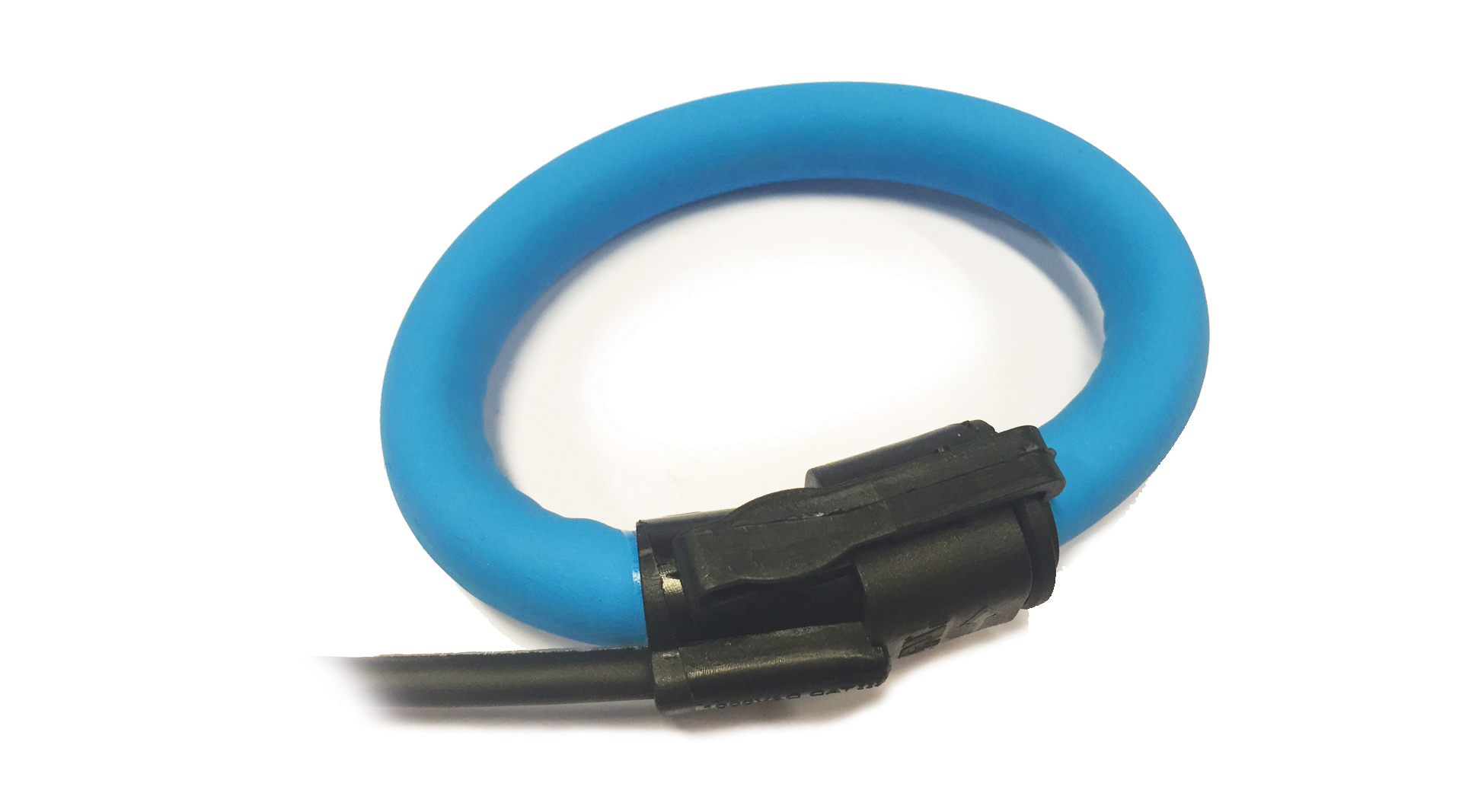

EW8ETC
Sensori di Rogowski
Scarica pdf
| EW8ETC |
|
|---|---|
| Type | Rogowski Coil |
| Primary current range | 1 ÷ 5.000A |
| Accuracy | 1% |
| Coil Lenght | 250mm or 400mm |
| Coil internal diameter | 68mm or 115mm |
| Auxiliary cable lenght | 2.000mm or 6.000mm |
CODICI DI ORDINAZIONE
| CODES | DESCRIPTION |
|---|---|
| EW8ETA0101A | TA CP 150/5 D22 C0.5 TAB0 3VA Current Transformer ratio 150A/5A, cable 22mm, class 0.5, type TAB0, performance 3VA |
| EW8ETA0202A | TA CP 250/5 D32 B40 C0.5 TAB2 3VA Current Transformer ratio 250A/5A, cable 32mm, bus bar 40x10, 35x15, 25x25 mm class 0.5, type TAB2, performance 3VA |
| EW8ETA0302A | TA CP 500/5 D32 B40 C0.5 TAB2 6VA Current Transformer ratio 500A/5A, cable 32mm, bus bar 40x10, 35x15, 25x25 mm; class 0.5, type TAB2, performance 6VA |
| EW8ETA0303A | TA CP 500/5 B80 C0.5 TAB4 10VA Current Transformer ratio 500A/5A, bus bar 80x30mm, class 0.5, type TAB4, performance 10VA |
| EW8ETA0403A | TA CP 1000/5 B80 C0.5 TAB4 20VA Current Transformer ratio 1000A/5A, bus bar 80x30mm, class 0.5, type TAB4, performance 20VA |
| EW8ETA0402A | TA CP 1000/5 D32 B40 C0.5 TAB2 10VA Current Transformer ratio 1000A/5A, cable 32mm, bus bar 40x10, 35x15, 25x25 mm; class 0.5, type TAB2, performance 10VA |
| EW8ETA0504A | TA CP 2000/5 B125 C0.5 TAB5 50VA Current Transformer ratio 2000A/5A, bus bar 125x50mm, class 0.5, type TAB5, performance 50VA |
| EW8ETB10A1A | TA APR 100/5 B30 C0.5 Split-Core Current Transformer ratio 100A/5A, bus bar 30x20mm, class 0.5, type TAPR11, performance 3VA |
| EW8ETB02A1A | TA APR 250/5 B30 C0.5 Split-Core Current Transformer ratio 250A/5A, bus bar 30x20mm, class 0.5, type TAPR11, performance 2.5VA |
| EW8ETB03A2A | TA APR 500/5 B80 C0.5 Split-Core Current Transformer ratio 500A/5A, bus bar 80x50mm, class 0.5, type TAPR12, performance 3VA |
| EW8ETB04A2A | TA APR 1000/5 B80 C0.5 Split-Core Current Transformer ratio 1000A/5A, bus bar 80x50mm, class 0.5, type TAPR12, performance 5VA |
| EW8ETB04A3A | TA APR 1000/5 Q80 C0.5 Split-Core Current Transformer ratio 1000A/5A, bus bar 80x80mm, class 0.5, type TAPR13, performance 5VA |
| EW8ETC00R1B | R COIL D68 C1 Rogowski Coil Sensor max 5 kA, max internal diam. 68 mm, coil lenght 250 mm, class 1, cable lenght 2 m |
| EW8ETC06R1B | R COIL 6M D68 C1 Rogowski Coil Sensor max 5 kA, max internal diam. 68 mm, coil lenght 250 mm, class 1, cable lenght 6 m |
| EW8ETC00R3B | R COIL D115 C1 Rogowski Coil Sensor max 5 kA, max internal diam. 115 mm, coil lenght 400 mm, class 1, cable lenght 2 m |
| EW8ETC06R3B | R COIL 6M D115 C1 Rogowski Coil Sensor max 5 kA, max internal diam. 115 mm, coil lenght 400 mm, class 1, cable lenght 6 m |
