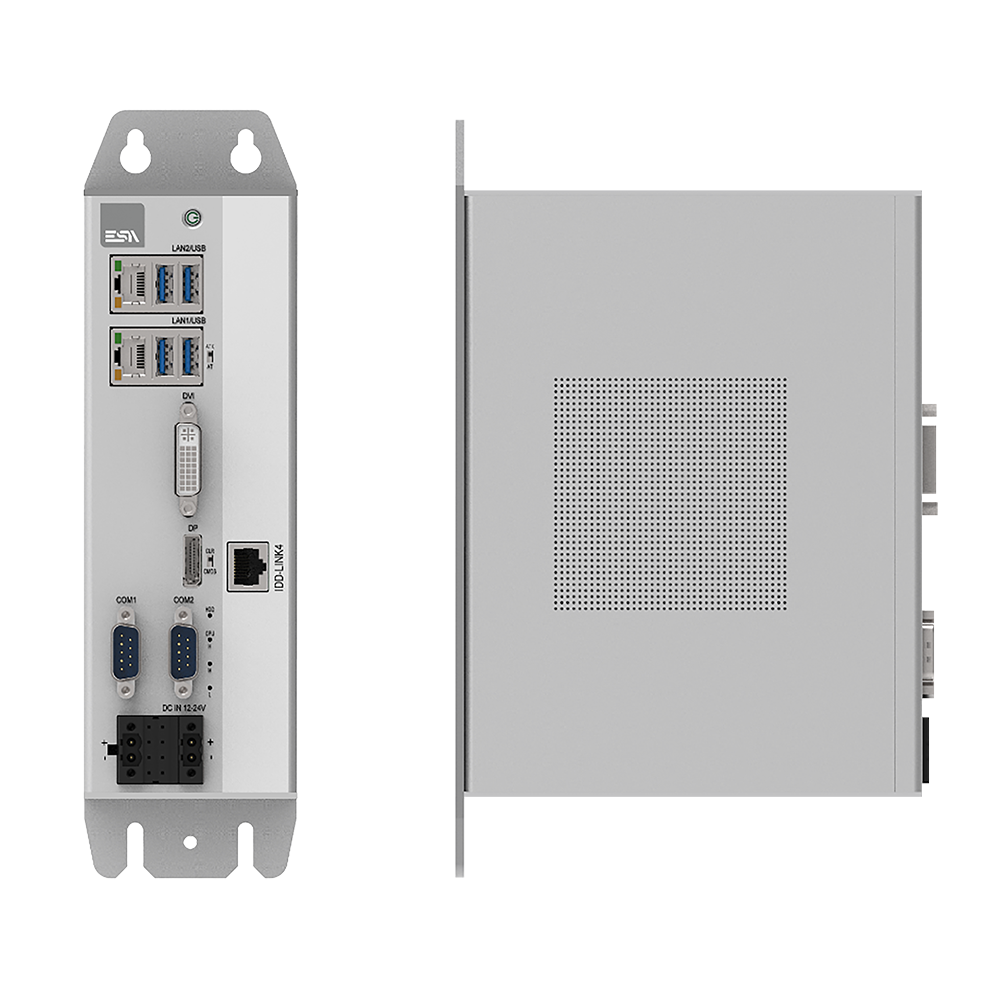

- Trasmettitore KVM. Permette la connessione dell’industrial monitor fino a 100mt di distanza tramite un unico cavo.

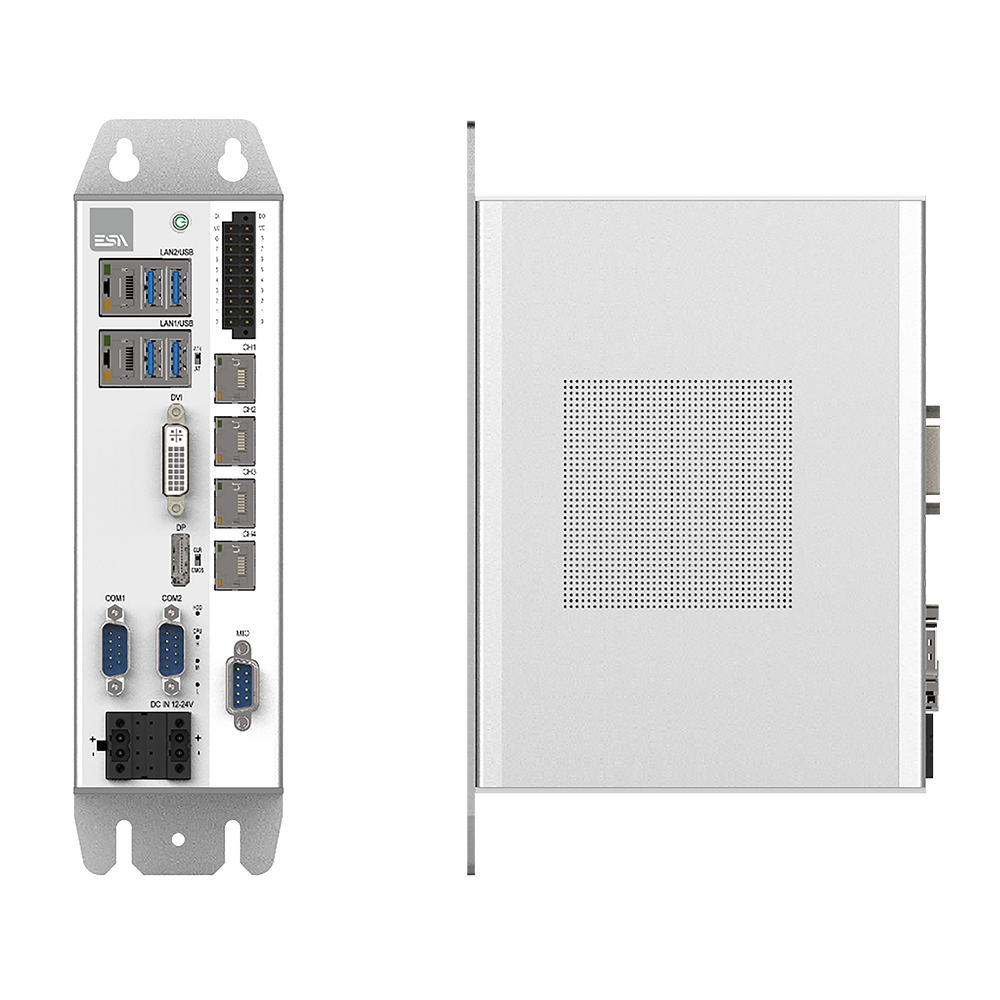

- Switch integrato 4 porte Gigabit con PoE
- 8 digital input + 8 digital output integrati. Permette ad esempio di abilitare la connessione remota tramite chiave hardware.

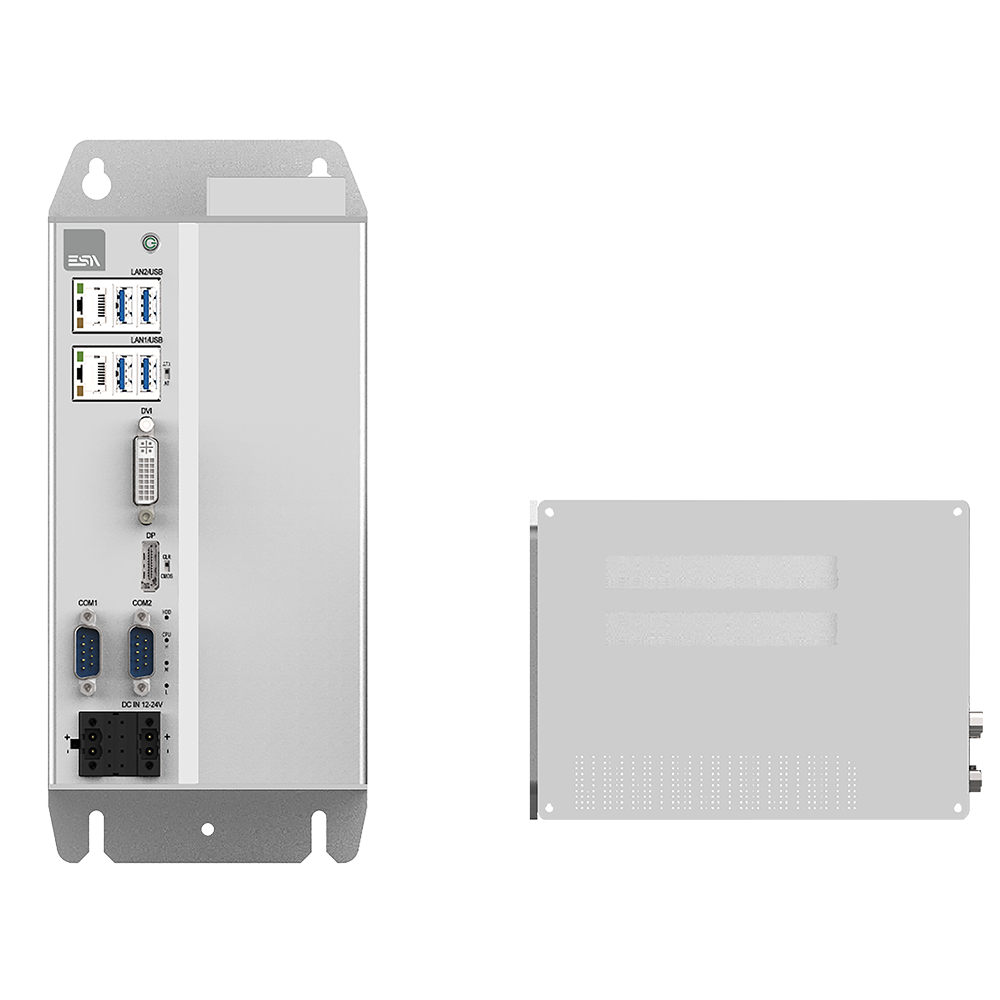

- Scheda di espansione PCI
- Scheda di espansione PCI express x1
LUMIA BOOK
| IPC - Edge | IPC - Open | |
|---|---|---|
| O.S. | W10 Enterprise LTSC 2019 | W10 Enterprise LTSC 2019 |
| 64 bits | 64 bits | |
| Application Software | Kreo HMI | Open |
| Bezel / Chassis | Alluminium |
|
| Processor | Intel Apollo Lake J3455 |
|
Intel Core i3-7100T |
||
Intel Core i5-7500T |
||
Intel Core i7-7700T |
||
| Chipset | Apollo lake single chip set |
|
SoC |
||
| GPU | Intel Gen.9 HD Graphics, HEVC/H265 High resolution |
|
| RAM | 4GB/8GB/16GB DDR4 |
|
| Mass storage | mSATA 128GB SSD |
|
mSATA 256 GB SSD (i7 model) |
||
| Ethernet Port | 2 x Intel i210-AT 1000Mbps RJ-45 |
|
| Video output | DVI-I 1920x1200 @60 Hz |
|
VGA 2560x1600 @60 Hz |
||
DP 4096x2304 @60 Hz |
||
| COM Port | 2 x RS-232 /422 /485 (DB9) |
|
| USB Port | 4 x USB3.0 |
|
| Audio | - |
|
| Power supply | DC 12~24V input, 2 x 2-pin terminal |
|
| Consumption (W) | 10 – 80W |
|
| Operating Temperature (°C) | -20ºC ~ 60ºC |
|
| Storage Temperature (°C) | -40ºC ~ 80ºC |
|
| Humidity | < 95% (non condensing) |
|

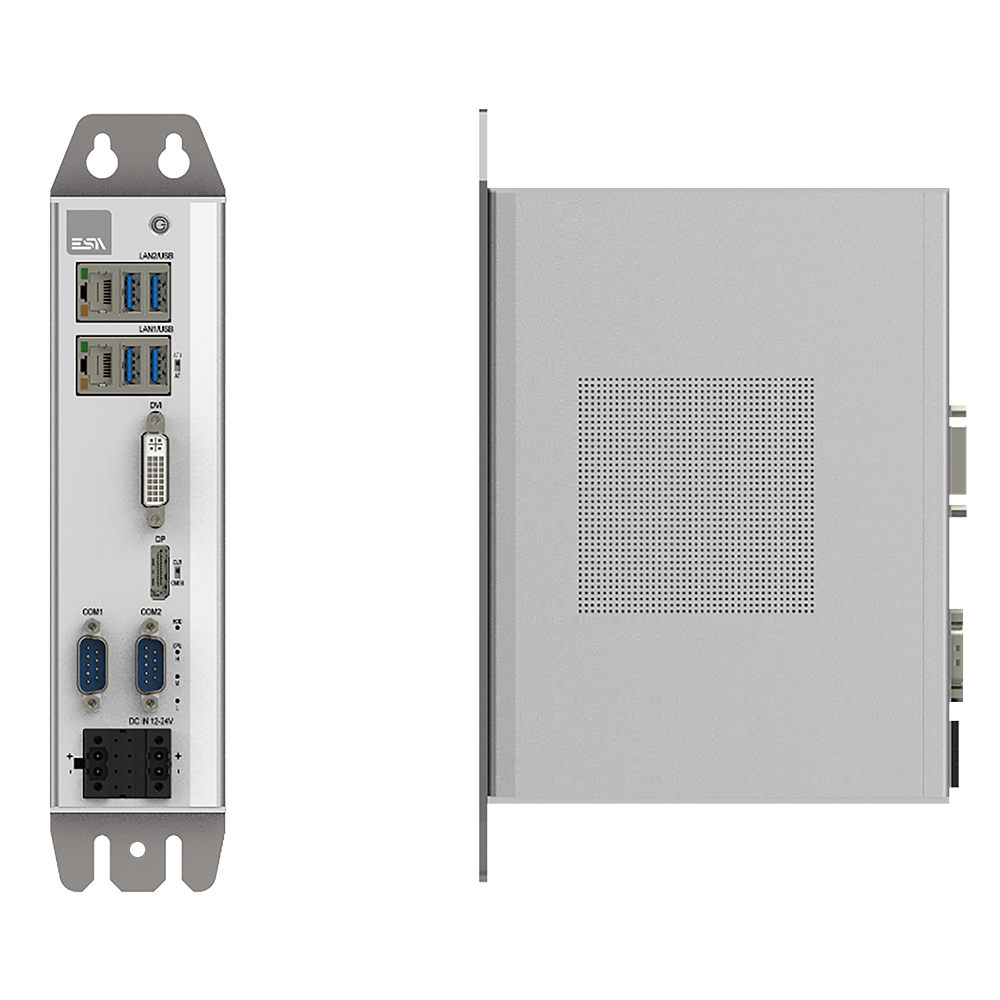

| Dimensions (LxWxH) | Basic: 255mm x 152mm x 57.7mm |
|
KVM Transmitter: 255mm x 152mm x 70.8mm |
||
PoE 4xLAN switch: 255mm x 152mm x 70.8mm |
||
Exp slots: 255mm x 152mm x 112.7 |
||
| Weight | 2~4KG |
|
| Protection degree | IP30 |
|
| Certifications | CE, FCC compliant |
|
| Switch | 1 x Power switch |
|
1 x AT/ATX select switch |
||
1 x Clear/CMOS switch |
||
